Measurement range: 0 ~ 45m / s, 0 ~ 70m / s optional
Accuracy: ± (0.3 + 0.03V) m / S (V: wind speed) resolution: 0.1m/s
Starting wind speed: ≤ 0.5m/s power supply mode: 5V / 12V / 24V wiring mode: voltage type: 3-wire, current type: 3-wire, RS-485 signal: 4-wire signal output: voltage type: 0 ~ 5V DC, current type: 4 ~ 20 mA
RS-485 signal: support Modbus Protocol (baud rate 9600 can be set, address 0-255)

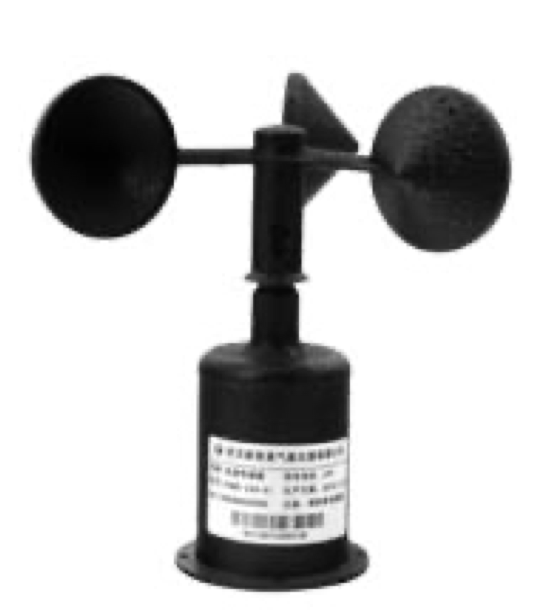

Structure: Engineering carbon fiber material, rotating three air cup structure, built-in single beam laser emission tube, higher measurement sensitivity
Maximum turning radius: 90mm
Overall height: 160mm, response time: < 1s, measurement stability time: 1s, load capacity: current type output impedance ≤ 250 Ω, voltage type output impedance ≥ 1K Ω, working environment: temperature - 40 ° C ~ 50 ° C, humidity ≤ 100% RH
Protection grade: IP45 cable grade: rated voltage: 300V temperature grade: 80 ° C
